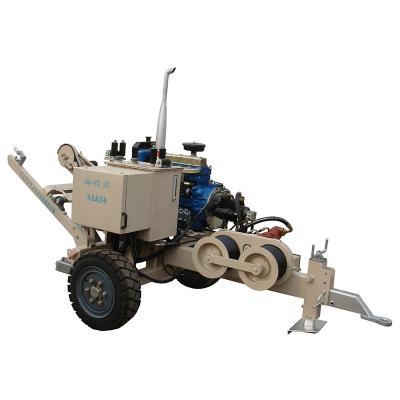

SA-YQ30 Hydraulic Puller
- 产品型号：SA-YQ30
- 产品编号：07001
- 浏览次数：6530
SA-YQ30 Hydraulic Puller
-
Essential parameter
-
Maximum pull force (kN):30
-
Continuous pull force (kN):25
-
Maximum speed (km/h):5
-
Bull wheel bottom of groove diameter(mm) :Φ300
-
Bull wheel grooves number : 7
-
Maximum suitable steel rope diameter (mm): Φ13
-
Maximum through connector diameter (mm): Φ40
-
Engine power /speed (kW/rpm):31/2200
-
Dimensions (mm):3200×1600×2000
-
Weight (kg): 1500
-
Feature
-
Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
-
The max pull for conductor –stringing operation can preset ,automatic overload protection system .
-
Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
-
Attached reel winder with automatically level wind ,load and unload conveniently .
-
main component
-
Chinese famous diesel engine.
-
Main pump:SAUER –DANFOSS
-
Reducer:EUROPAIR(Italian)
-
Matched reel:GSP950 ,Item number :07125A
