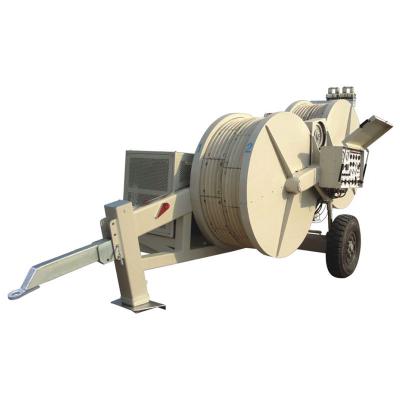

SA-YZ2×40B Hydraulic Tensioner

  • 产品型号:SA-YZ2x40B
  • 产品编号:07192
  • 浏览次数:7081

SA-YZ2×40B Hydraulic Tensioner

    • Essential parameter
    • Maximum Tension(kN):2×40 or 1×80
    • Continuous Tension(kN):2×35 or 1×70
    • Maximum speed (km/h):5
    • Bull wheel bottom of groove diameter(mm):Φ1500
    • Number of grooves:2×5
    • Maximum pull-back (kN):2×40 or 1×80
    • Maximum pull-back speed(km/h):2×1.5
    • Maximum suitable conductor diameter (mm): Φ40
    • Engine power /speed (kW/rpm):51/2500
    • Dimensions (mm): 4500×2200×2800
    • Weight(kg):4850
    • Uses
    • it’s used for stringing various conductors and earth wires.suitable for stringing one conductor or two bundle conductors
    • Feature
    • Bull wheel with wearproof MC nylon lining segments.
    • Infinitely variable tension control and constant tension conductor stringing .
    • Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
    • Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand .
    • Main component
    • Engine :Beinei Deutz air cooled diesel engine .
    • Main pump/motor : Rexroth (BOSCH)
    • Reducer : RR (Italian)
    • Main hydraulic valve : Rexroth (BOSCH)
    • According to actual needs,it can configure mobile control consoles , it’s easy for one operator to control 2 machines simultaneously ,which facilitates 4-conductor–stringing operation using two machines .the control consoles item number is 07193
